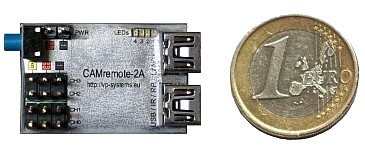

CAMremote
The CAMremote is highly integrated miniature remote control device for cameras and camcorders. Several digital cameras/camcorders from Canon, Nikon, Ricoh, Pentax, Sony, Panasonic, Olympus and BlackMagicDesign have a remote control feature which utilizes the Wifi, USB port, an infrared signal, Remote Control Port, LANC remote interface port or Multiterminal Interface port. The CAMremote is a USB On-the-Go device which has USB host and device functionality. It has also Wifi support so camera can be controlled without wires. It can control the camera's remote features like shutter, zoom, aperture/shutter speed values, etc. In addition, CAMremote has an integrated intervalometer which will trigger the camera automatically after a predefined time. The infrared support of the CAMremote can be used with cameras where no USB remote control feature is available but which have an infrared sensor. The Remote Port support can be used mostly with SLR-cameras which has dedicated port for remote control. Using Graphical User Interface software which runs on Windows operating systems, CAMremote can store settings for up to seven different camera and/or servo motor configurations. Switching between stored settings is accomplished by pressing an onboard button or remotely using radio control.
The CAMremote is
compatible with JR,
Futaba, Hitech and all standard R/C radio receivers. Camera functions
(shutter release/zoom/setting changes) can be
controlled using the servo channels of an R/C receiver, mechanical
switches, or by other electronic devices such as motion sensors,
microcontrollers etc. CAMremote

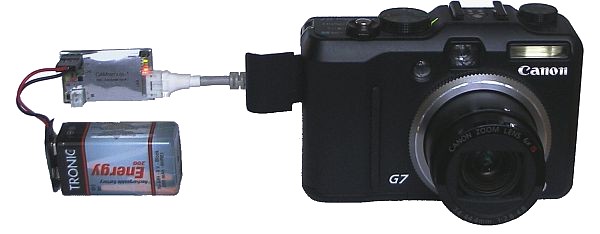

can also work as a stand-alone device powered by 3-12V
batteries. CAMremote can be used to control servo
motors to automatically tilt and pan the camera.
The CAMremote is now controllable using bidirectional UART interface which means that all camera features which are remote controllable can be controlled using simple text commands through UART interface. Master controller can be any system with UART interface like PC with terminal software or any microcontroller. UART specification an current command set can be viewed here.
We are offering possibility to integrate preprogrammed CAMremote microcontroller into customer PCB board and provide integration support.
The CAMremote is now controllable using bidirectional UART interface which means that all camera features which are remote controllable can be controlled using simple text commands through UART interface. Master controller can be any system with UART interface like PC with terminal software or any microcontroller. UART specification an current command set can be viewed here.
We are offering possibility to integrate preprogrammed CAMremote microcontroller into customer PCB board and provide integration support.
News
| 28-May-2018 | New supported camera: Sony UMC-S3A (full control through Micro-USB Cable: AF, Shoot, Record, Av/Tv/ISO/ExpComp etc) |
| 27-Mar-2018 | ZHIYUN Crane MULTI Cable for Sony Cameras added to list |
| 15-Mar-2018 | MULTI Adapter for USB connection to PC and Shutter Release hardware added to list |
| 02-Feb-2018 | New supported cameras: Sony A7R3, RX10M4, RX0, A9. Panasonic GH5/GH5s/G9 through USB (full control) |
| 24-Apr-2017 | CAMremote-3 and CAMremote-3-Wifi released and added to list |
| 13-Feb-2017 | Sony UMC-S3C added to list |
| 01-Jul-2016 | Parrot Sequoia USB remote control support added (Shoot). More remote controllable features added to Panasonic cameras which have Wifi support: Av, Tv, ISO, Zoom and Manual focus drive |
| 09-Nov-2015 | Long-range Radio Set for triggering Parachuite Rescue Kit is added to product list |
| 04-Nov-2015 | Wifi module to control Wifi-enabled cameras is added to product list |
| 17-Jul-2015 | New Sony MULTI Cables with 90-degree plug added to product list |
| 29-Jun-2015 | Software/Firmware update (beta): Ricoh GR camera support; Av/Tv/ISO control support through USB for Panasonic GH4; UART update; Futaba's SBUS compatible cable added to product list |
| 12-May-2015 | Remote Control + A/V Cable for Samsung cameras added to product list |
| 05-May-2015 | Software/Firmware update: improved functionality with Sony's MULTI cables and Panasonic GH4 cables |
| 15-Apr-2015 | Control cable for Ricoh cameras added to products list |
| 15-Feb-2015 | Sony AXP33 4K added to supported camera list |
| 30-Jan-2015 | Web pages and e-mails of the vp-systems.eu has been
unavailable 3 days because serious disaster at internet service
provider. We are very sorry of that issue! Please contact again if you
tried to contact us unsuccessfully. Wireless PIR Motion sensor added to product list. |
| 17-Dec-2014 | MULTI+USB Combo Cable for Sony Cameras added to product list |
| 28-Oct-2014 | Software/Firmware update: Zoom support for Panasonic GH4. Requires special cable with 2.5mm plug. New USB+A/V cable for Panasonic cameras (note only GH4 is supporting remote control through USB, firmware support will be available in near future). This cable is useful to connect composite video to video downlink equipment. |
| 10-Sep-2014 | Support for new Sony cameras: ICLE-QX1, DSC-QX30, PXW-X70 |
| 04-Jul-2014 | User Manual update: Added descriptions of new Control Modes. Examples of different configurations (BlackMagic cameras, Sony Multiterminal, GoPro) |
| 11-Mar-2014 | Software/Firmware update: Sony Multiterminal interface support added (focusing, shutter release, movie recording, zoom). Sony USB/PTP remote control support added (cameras ILCE-7/7R/5000, SLT-A58/A99/A99V, DLR-A700/A850/A900). Multiterminal cable added to product list. Shipping cost increased by 1 EUR. |
| 09-Dec-2013 | Web version of User Manual released |
| 04-Dec-2013 | Software/Firmware update: New Control Modes for Blackagic cameras in order to control shutter release, movie, auto/manual focusing and auto/manual iris control. |
| 16-Sep-2013 | Software/Firmware update: BlackMagic Pocket/Cinema cameras support added, GoPro interface cable added to products list |
| 31-Jul-2013 | Software/Firmware update: Update is available if you have issues of using Sony LANC interface |
| 19-Jun-2013 | Cable with 2 infrared emitters for stereoscopic image/video shooting added to products list |
| 29-Apr-2013 | Software/Firmware update: Sony LANC interface improvement |
| 11-Mar-2013 | Software/Firmware update: Nikon DSLRs PTP support added (shutter speed, aperture, ISO, shutter release, movie recording - tested on Nikon D800). Smooth zoom improvement for LANC cameras |
| 08-Sep-2012 | Software/Firmware update: LANC interface support added. Supported cameras list updated |
| 14-Apr-2012 | More examples (different setups) added to ordering page; Samsung Remote Port cable added |
| 13-Apr-2012 | Software/Firmware update: Improved shutter release compatibility with Nikon DSLRs and Nikon Coolpixes in USB/PTP mode |
| 09-Mar-2012 | Software/Firmware update: Shutter release can be swapped to movie record and can be used to make time lapse recordings or use movie recording with motion sensor; ISO+/- function added to RC control profile |
| 29-Jan-2011 | Software/Firmware update: High Dynamic Range (HDR) shooting support mode added, GoPro HERO camera support added |
| 19-Aug-2011 | New Remote Port cables for Canon/Nikon/Sony added to ordering page |
| 25-Jul-2011 | Software/Firmware update: 'BUSY' text issue in Canon DSLRs solved; improved USB communication speed. UART interface support. |
| 18-Jul-2011 | Software/Firmware update: 12-button transmitter support added; liveview mode handling improved on Canon DSLRs |
| 01-Mar-2011 | Software/Firmware update: Servo-controlled zoom improvements, system startup improved |
| 13-Dec-2010 | List of supported Remote Port cables/cameras updated |
| 27-Nov-2010 | Software/Firmware update: Sony NEX-5 IR support added, Profiles save/load to file added to configuration software |
| 20-Aug-2010 | Software/Firmware update: Few radio-related issues fixed |
| 12-Aug-2010 | Software/Firmware update: Normal and 360° panning servo support added to configuration software. |
| 22-Jul-2010 | Software/Firmware update: Critical update to solve radio receiver issue for customers who bought the CAMremote with radio receiver between 14-30th of June 2010. |
| 08-Jun-2010 | Software/Firmware update: Canon DSLRs stability improvement of video recording |
| 30-May-2010 | Software/Firmware update: Infrared support for Panasonic HDC-SD300 added |
| 27-May-2010 | Software/Firmware update: Video recording support for Canon 500D/550D |
| 17-Mar-2010 | Software/Firmware/User Manual update |
| 05-Feb-2010 | Software/Firmware update: VIDEO RECORDING and MANUAL FOCUS support for Canon 5D Mark II and 7D (beta) |
| 17-Dec-2009 | Software/Firmware update: USB remote control support for Canon DSLRs (beta) |
| 28-Sep-2009 | Release of new wireless radio modules for CAMremote-2 |
| 22-May-2009 | Software/Firmware update, experimental version for CAMremote-2 |
| 01-Apr-2009 | Release of the CAMremote-2 PRO version |
| 18-Mar-2009 | Release of the CAMremote-2 LIGHT version |
| 06-Feb-2009 | Light Sensor Feedback Cable for CHDK cameras |
| 28-Jan-2009 | Software/Firmware update |
| 24-Sep-2008 | Software/Firmware update: USB remote triggering support added for Nikon dSLR's/P&S, Ricoh GX100/200, Canon 350D/400D cameras; Canon dSLR remote port support (focus/shutter release) added, Infrared support added for Panasonic camcorders, 64-bit Windows Vista support improved |
| 23-May-2008 | Software/Firmware update |
| 09-May-2008: | Software/Firmware update: Infrared camera/camcorder support added for Canon, Nikon, Pentax, Sony, Olympus, Konica, Minolta |
| 17-Apr-2008: | Supported camera list updated |
| 25-Apr-2008: | Software/Firmware update |
Features
- Trigger the
shutter of the camera using the following methods:
- Wifi remote control
- USB remote control using Picture Transfer Protocol (USB/PTP)
- USB remote control if CHDK firmware add-on is installed on Canon cameras (USB/CHDK)**
- USB remote control using Ricoh CA1 protocol (USB/CA1)
- Remote control using Canon/Nikon/Pentax/Sony/Panasonic 3-pin remote port (PORT/E3)
- Infrared remote (IR) control
- LANC remote control
- Servo motor “finger” which presses down the shutter button of the camera (SERVO-FINGER) - Trigger the video shooting using USB/CHDK method
- Controls the zoom function of the camera using USB/PTP, USB/CHDK, IR or servo motor method
- Controls camera parameters like shutter speed, exposure, focus, etc. using USB/PTP or USB/CHDK method
- Controls the camera lens open/close and sleep mode control using USB/PTP or USB/CHDK method
- Controls Tilt (vertical) and Pan (horizontal) servo motor control for manual/automatic photography
- Rotating angles of servo rotors are fully configurable
- Programmable intervalometer for automatic photography
- Battery monitoring and undervoltage protection for Lithium accus
- Ability to connect a 2 or 3 channel R/C receiver or any external switch or electronic device to control the CR
- 7 PC configurable profiles for different settings or different cameras selectable in the field
- Four on-board LED's to indicate active profile or status of the device
- Camera settings easily set in the field for use with CR
- Multiple camera triggering when CRs are connected together (for example stereo photography)
- Compatible with DuneCam systems, adds control over shutter/zoom/settings features using USB/PTP or USB/CHDK method
- UART interface support for camera control (USB-UART modules, Bluetooth modules)
- Upgradeable firmware via USB for product improvements
- Wide supply voltage range from 3V to 12V
- Very low power consumption 1 – 15mA depending on configuration
- Ultra light and extremely compact size (3g/0.106oz, 31x21mm/1.22"x0.83")
- Product continually improving as a result of the feedback
and suggestions of users
** CHDK firmware enhancement is a 3rd party solution and VP-Systems is not responsible for its use, and cannot guarantee its 100% functionality.

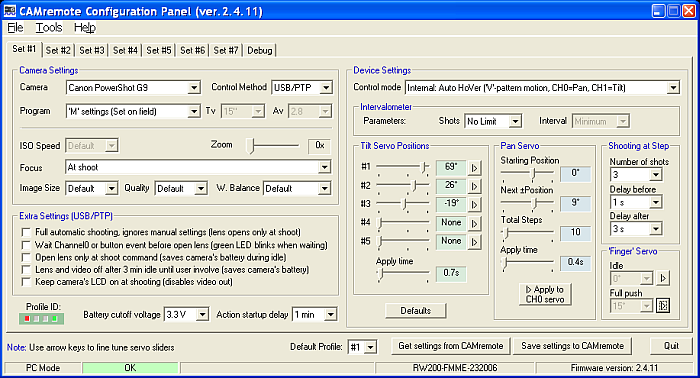

The CR is configurable and upgradeable using PC with Microsoft Windows operation systems only (98, 2k, XP, Vista, W7). Other options will be added in future.
Connectivity of the CAMremote-PRO
Applications
- Any types of remote/aerial photography: Drone/Copter/Kite/Balloon/Pole/Heli/Plane/Blimp etc.
- Panorama photography
- Stereo or multicamera photography
- Wildlife photography using a motion detector as a triggering device
- Security systems using a motion detector as a triggering device
- Long time events recording like astronomy
- Diving/underwater equipment
See more about how to use CR in different setups on the Applications page.
Supported Cameras and IR Remote Controllers
Important note: it doesn't mean that camera is not remote controllable if your camera is not listed here. Please ask for more info.Latest firmware version supports following cameras and infrared remote controllers:
WIFI:
- All Sony cameras (A-series, Action cameras, camcorders)* where is Wifi support
- All Panasonic Cameras (list may not be complete): FT5, FZ1000, FZ2000, FZ2500,
FZ300, FZ70, FZ80, FZ82, GH3, GH4, GH5, G6, G7, G80, G85, G9, GF6, GF7,
GF8, GF9, GM1, GM5, GX7, GX7 Mark II, GX8, GX80, GX800, GX85, GX850,
LF1, LX10, LX100, LX15, LZ40, SZ10, SZ8, TS5, TZ100, TZ40, TZ55, TZ57,
TZ60, TZ70, TZ80, TZ90, ZS100, ZS30, ZS35, ZS40, ZS45, ZS50, ZS60
- GoPro cameras: Under development
- Canon cameras: Under development
- Samsung cameras: Under development
* Note not all camera features are remote controllable. Check supported features of Sony cameras here and here. Check camera's smartphone app to find out supported features.
USB/PTP Mode:
- Canon PowerShot G5, G6, G7, G9, G10
- Canon PowerShot A60, A70, A75, A85, A95
- Canon PowerShot A310, A510, A520, A620, A640
- Canon PowerShot S50, S60, S70, S80
- Canon PowerShot S410, S500
- Canon PowerShot S3 IS, S5 IS
- Canon PowerShot SX100 IS, SX110 IS
- Canon Digital IXUS 400/S400
- Canon DSLR 300D, 350D
- Canon DSLR 40D
- Canon DSLR 400D (EOS Digital Rebel XTi, EOS Kiss Digital X)
- Canon DSLR 450D (EOS Digital Rebel XSi, EOS Kiss X2)
- Canon DSLR 1Ds Mark I-IV, C*
- Canon DSLR 5D Mark II
- Canon DSLR 5D Mark III
- Canon DSLR 6D*
- Canon DSLR 7D, 7D Mark II*
- Canon DSLR 100D (EOS Rebel SL1)
- Canon DSLR 50D, 60D, 60Da
- Canon DSLR 500D (EOS Rebel T1i, EOS Kiss Digital X3)
- Canon DSLR 550D (EOS Rebel T2i, Kiss X4)
- Canon DSLR 600D (EOS Rebel T3i)
- Canon DSLR 650D (EOS Rebel T4i)
- Canon DSLR 70D, 700D (EOS Rebel T5i)
- Canon DSLR EOS M (only Tv/Av/ISO control. Shutter release and Movie requires Infrared control)
- Canon DSLR 100D (EOS Rebel SL1)*
- Canon DSLR 1200D (EOS Rebel T5 / EOS Kiss X70)*
- Nikon DSLR D1, D1H, D1X, D2H, D2X, D2HS, D2XS, D200, D100, D80, D70, D50, D40, D700, D750*, D800, D3200, all others as well
- Nikon Coolpix L4, L5-L18*, P5000, P6000, most probably all others as well
- Parrot Sequoia
** Support is under development
USB/CHDK Mode:
- Canon PowerShot-Series
- Canon IXUS-Series
- Canon SD-Series
- Canon
EOS-Series
Visit the CHDK remote control web page to get latest information about supported cameras.
USB/CA1 Mode:
- Ricoh GX-Series: GX100, GX200, GX300
- Canon DSLR-series
- Nikon DSLR-series
- Canon PowerSot G10, G11, G12, G15, G16, G1X
- Panasonic DSLR cameras Lumix DMC-FZ Series, G-Series, GH-Series, L-Series, GF-Series (DMW-RSL1 compatible)
- Leica Digilux 2,Digilux 3
- Olympus DSLR cameras
- Sony DSLR cameras
- Samsung NX-Series cameras
LANC Control Mode (may not listed all possible new cameras):
- Canon EOS C-Series: C100, C300, C500
- Canon GL-Series: GL-1, GL-2
- Canon XA-Series: XA10
- Canon XF-Series: XF100, XF105, XF300, XF305
- Canon XH-Series: A1, A1S, G1, G1S
- Canon XL-Series: H1, H1A, H1S, XLxx
- Canon XM-Series: XM-1, XM-2
- Canon ZR-Series: ZRxx
- Canon Legria-Series
- Sony HDR-Series: CX105E, CX115E, CX11E, CX155E, CX190E, CX210E, CX250E, CX305E, CX350VE, CX520VE, CX580VE, CX6E, CX700VE, CX730E, CX900E, HC3E, HC5E, HC7E, HC9E, PJ10E, PJ200E, PJ260VE, SR10E, SR11E, SR12E, SR1E, SR5E, SR7E, SR8E, TD10E, TD20VE, TG3E, UX19E, UX1E, UX3E, UX7E, XR155E, XR260VE
- Sony DCR-Series: 90E, R1, DVD100E, DVD101E, DVD105E, DVD106E, DVD109E, DVD110E, DVD150E, DVD200E, DVD201E, DVD202E, DVD203E, DVD205E, DVD304E, DVD306E, DVD310E, DVD403E, DVD404E, DVD405E, DVD406E, DVD410E, DVD450E, DVD505E DVD506E, DVD7E, DVD91E, DVD92E, HC1000E, HC14E, HC18E, HC19E, HC20E, HC22E, HC24E, HC27E, HC30E, HC32E, HC35E, HC37E, HC39E, HC40E, HC42E, HC44E, HC45E, HC46E, HC47E, HC51E, HC62E, HC85E, HC90E, HC94E, HC94E, HC96E, IP1E, IP5E, IP7E, IP220E, IP55E, PC53E, PC55E, PC101E, PC103E, PC105E, PC106E, PC107E, PC109E, PC120E, PC330E, PC350E, PC1000E, SR190E, SR210E, SR290E, SR290E, SR30E, SR32E, SR33E, SR35E, SR37E, SR50E, SR52E, SR55E, SR57E, SR70E, SR72E, SR75E, SR90E, SX30E, SX50E, TRV14E, TRV19E, TRV22E, TRV25E, TRV33E, TRV340E, TRV355E, TRV50E, TRV60E, TRV740E, TRV80E, VX2000E, VX2100E
- Sony DSC-Series: F707, F717, F828, R1, V1, V3
- Sony
NEX-Series: EA50, FS100, FS700
- BlackMagic Pocket/Cinema cameras
Sony MULTITERMINAL Control Mode (may not listed all possible new cameras, check here, here, here and here for latest compatibility info):
- All Sony cameras and camcorders where is MULTI port. Check listing here.
Infrared Remote Controllers:
- Canon PowerShot: Pro 1 G1 G2 G3 G5 G6 S1 IS S60 S70 Pro 90 IS (only shutter release function for S60 & S70)
- Canon Digital
SLR (all models which have IR support): 300D (Digital
Rebel) 350D (Rebel XT) 400D (Rebel XTi), 450D, 500D, 550D, 600D,
5D/5Dmk2, 7D, 50D, 60D etc
ELAN 7 10 30 33 50 55 100 300v 300x 3000v QD; Film SLR Rebel K2 Rebel T1 Date Rebel T2 Date
Kiss III Kiss III L APS SLR EOS IX SureShot; (Prima Super) Z180u Z155 120 ELPH 370Z Z3 - Canon Camcorders
- Nikon (all models which has IR support):
Digital SLR D80 D70 D70s D50 D40x D40; Film SLR F75 F65 F55 N65 N75 etc
Coolpix 8800 8400; LiteTouch 150ED 140ED 130ED110s 100W; Nuvis S Pronea S; P5000, P6000 - Pentax:
Digital SLR ist DL 'ist DS 'ist D 'ist DL2; Optio S S4 S4i S5i
S5n
SV 330 430 450 550 555 750z S50 S40; Film SLR 'ist MZ-6 MZ-L ZX-L; (Optio A40, A30, A20, A10) - Sony: A100 A200 A700 NEX-5/5N NEX-6 NEX-7
- Sony Camcorders: (Remote controls RMT-814/830/831/835/840/841)
- Mintola:
Digital SLR:
DiMAGE F100 DiMAGE F200 DiMAGE F300 DiMAGE A200 DiMAGE S414 DiMAGE S404
DiMAGE S304; Film SLR: a/Dynax/Maxxum5 Date a/Dynax/Maxxum4
Date
a/Dynax/Maxxum3(L) Date a/Dynax/Maxxum40 a/Dynax/Maxxum50 Date
a/Dynax/Maxxum60 a/Dynax/Maxxum70;
Compact Film Riva/Freedom/CapiosZoom 20 Riva/Freedom/CapiosZoom 75W Riva/Freedom/CapiosZoom 115 Date Riva/Freedom/CapiosZoom 125 Date Riva/Freedom/CapiosZoom 130 Riva/Freedom/CapiosZoom140(A) Riva/Freedom/CapiosZoom 150 Date Riva/Freedom/CapiosZoom 160(A) - Olympus: (Remote control RM1, RM2)
- Panasonic Camcorders: HDC-SD300 etc
- Sanyo Camcorders: including the Xacti Range
- JVC Camcorders
* Beta version
NOTE: Support will be added for additional camera brands and models if there is remote control feature built in. If you have a camera not listed here which can be controlled using your PC, Smartphone, infrared, LANC or Remote Port, please let us know.
The CAMremote is fully configurable and its firmware is upgradeable using graphical user interface software:
Example of using the CAMremote with camera in automatic
photographing
mode, simplest setup:
More details about the use of
the device can be found in the CAMremote User
Manual.
27-Mar-2018
(c) 2018 VP-Systems
